Remote RF MUX Bd – 5250106

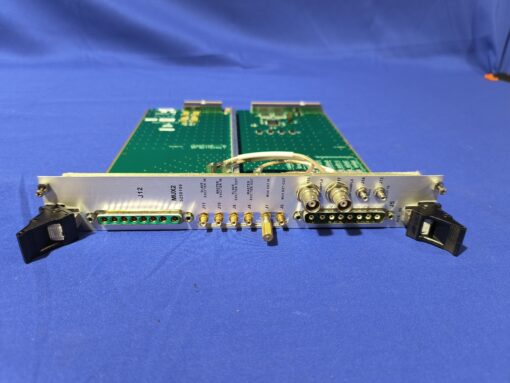

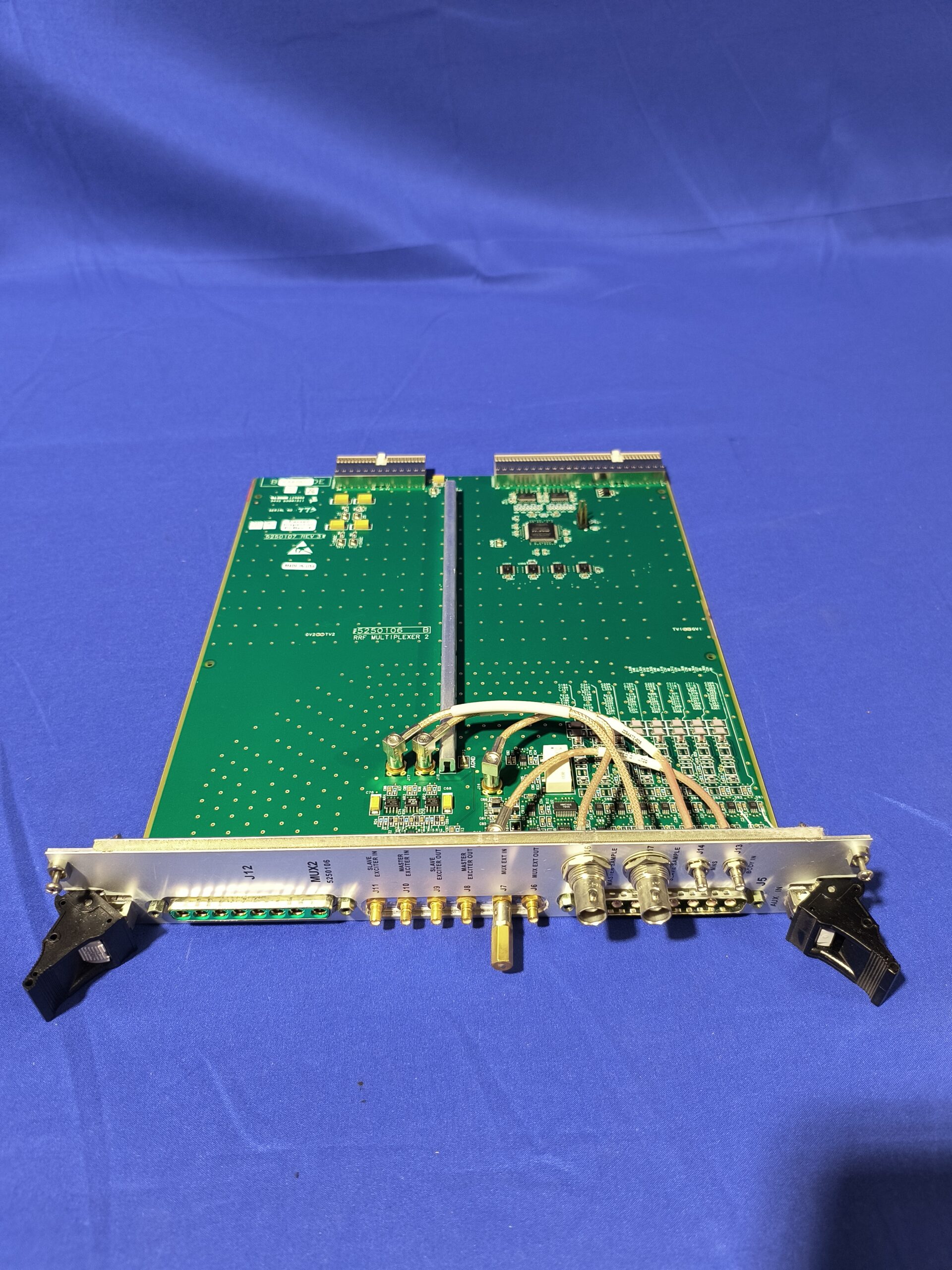

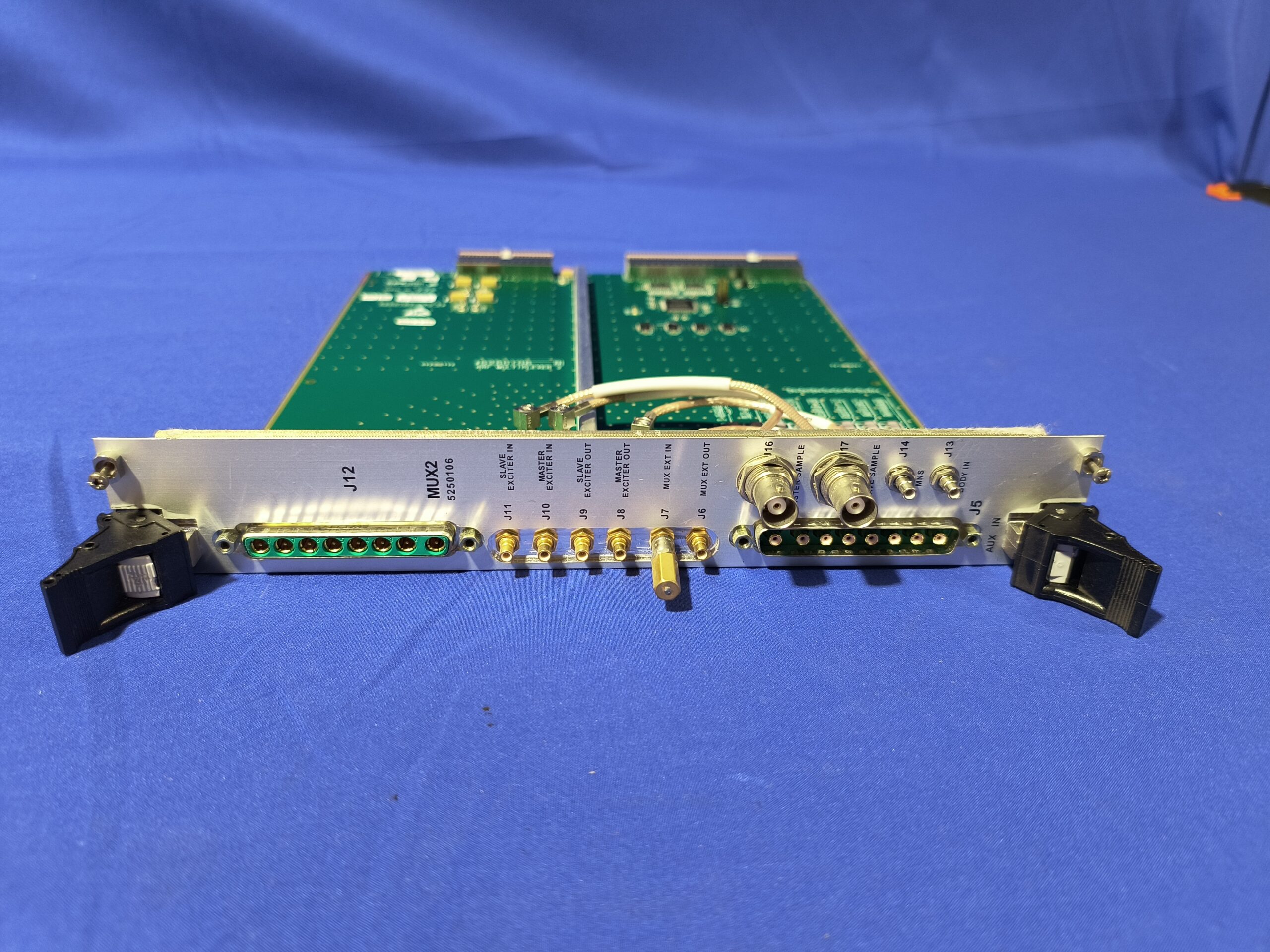

The GE MUX 2 Board (Part No. 5250106) is a circuit board used in GE MRI systems. It is a critical component of the Remote RF (RRF) sub-assembly, responsible for routing input signals to the receiver channels.
The GE MUX 2 Board (Part No. 5250106), also known as the Remote RF Multiplexer Board, is a vital component for GE MRI scanners, particularly those in the Signa Excite series. This board is a part of the Remote-RF (RRF) sub-assembly within the Multi-Generation DAQ (MGD) architecture. Its primary function is to serve as a signal multiplexer, routing input signal sources to eight receiver channels. It also facilitates loopback to the receiver inputs and provides external connections for system expansion. The MUX 2 Board is a backwards-compatible replacement for earlier MUX boards (e.g., 2274188 series). It is a Field Replaceable Unit (FRU) and does not require calibration after installation, ensuring a streamlined service and repair process.
Key Features:
- Part Number: 5250106
- Manufacturer: GE HealthCare
- Alternate Names: MUX 2 Board, Remote RF MUX Board, Remote RF Multiplexer Board
- Function: Routes input signals to receiver channels and enables system expansion
- Modality: MRI (Magnetic Resonance Imaging)
- Compatibility: GE Signa Excite 1.5T, GE Signa HD 1.5T, GE Signa HDx 1.5T, GE Signa HDxt 1.5T
Technical Specifications:
- Brand: GE HealthCare
- Part Number: 5250106
- Device Type: Circuit Board
- Application: MRI signal processing
- System Compatibility: GE Signa Excite series
- Replaces: Part numbers 2274188, 2274188-2, and 2274188-3
